ENGWE MAPFOUR N1 Air Carbon Fiber City E-Bike Ultra Light 15.5mph 250W

The Engwe MapFour N1 Air is the ultimate choice for your first carbon e-bike. Weighing just 15.6kg, it stands as the lightest carbon e-bike with a 100km range.

This premium bike has everything you need for an exceptional ride, offering smooth performance, enhanced agility, and effortless handling—making it ideal for urban commuting.

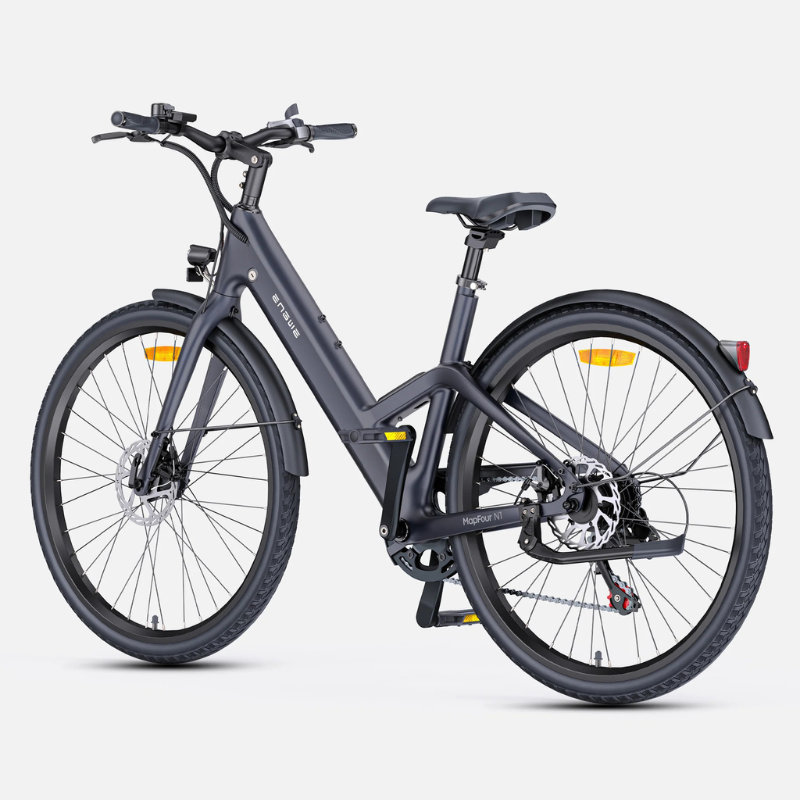

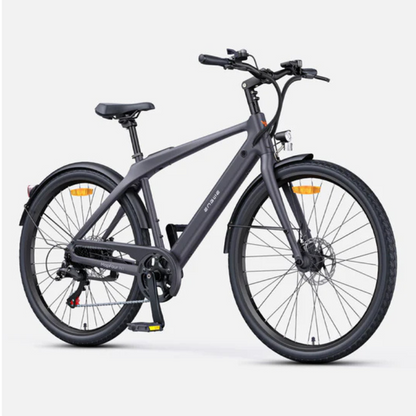

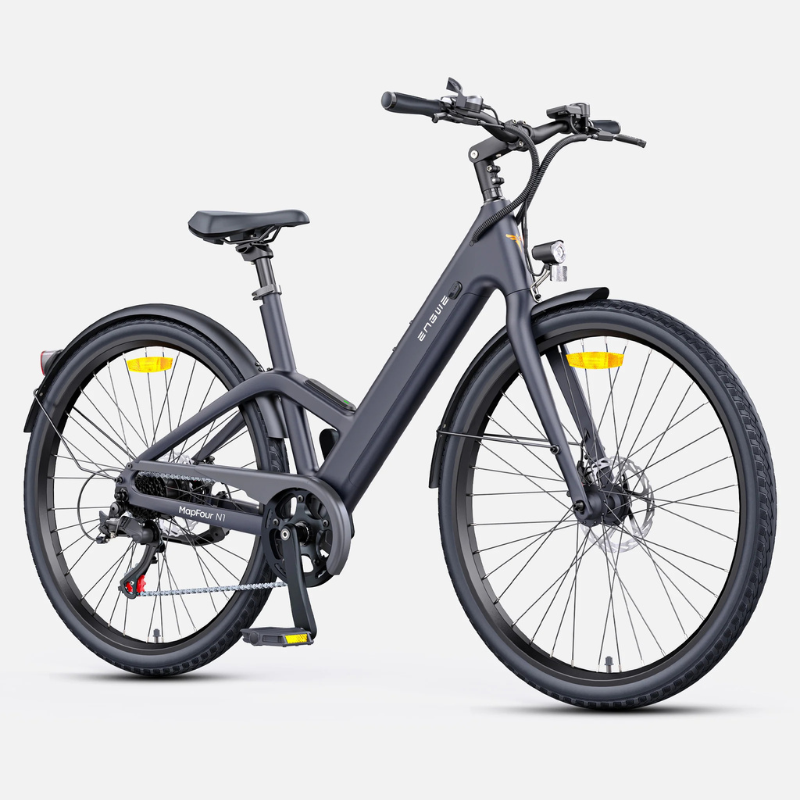

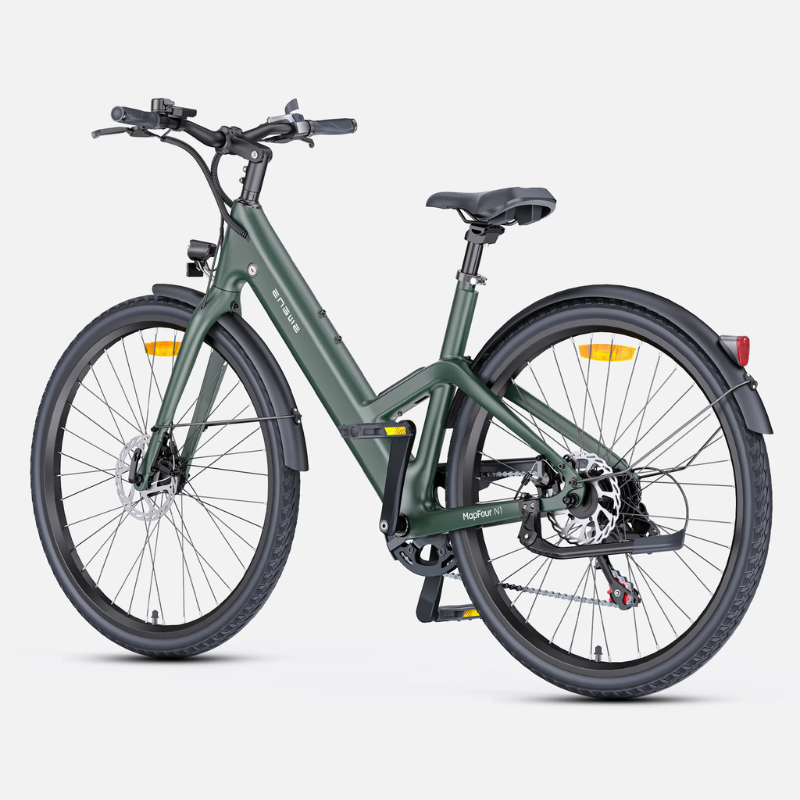

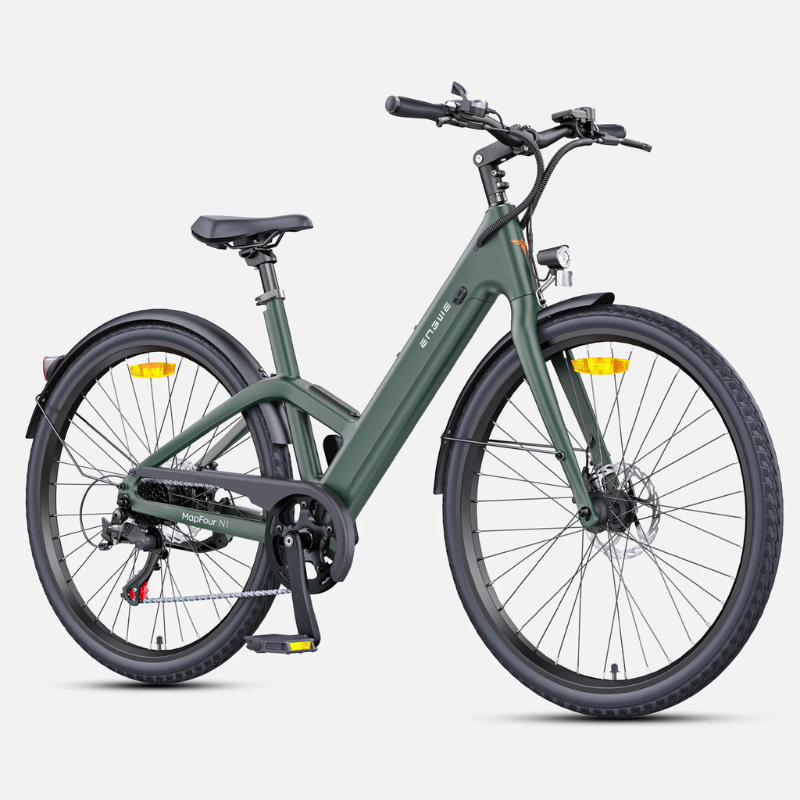

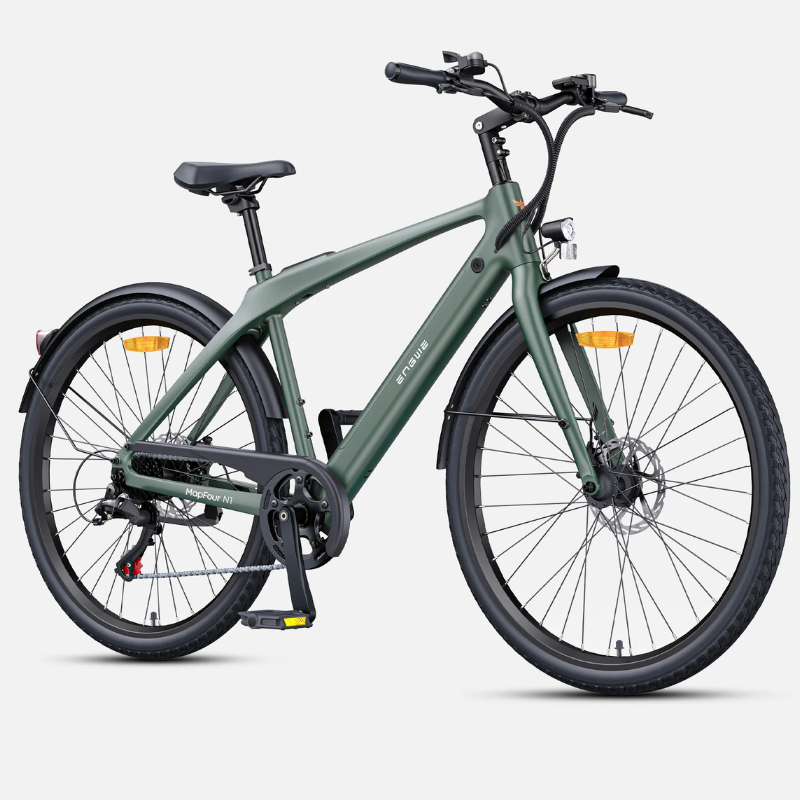

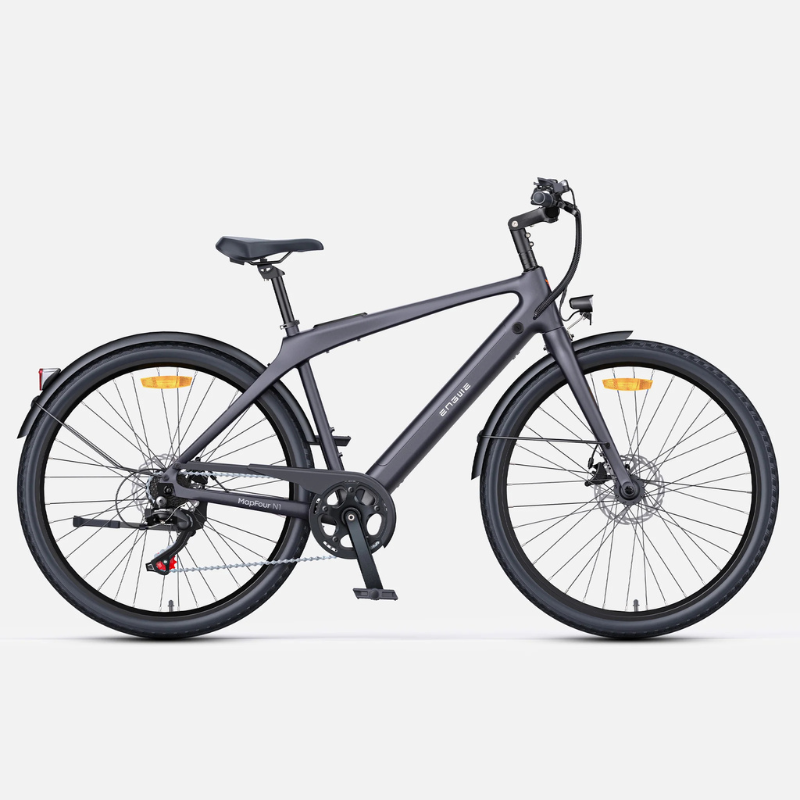

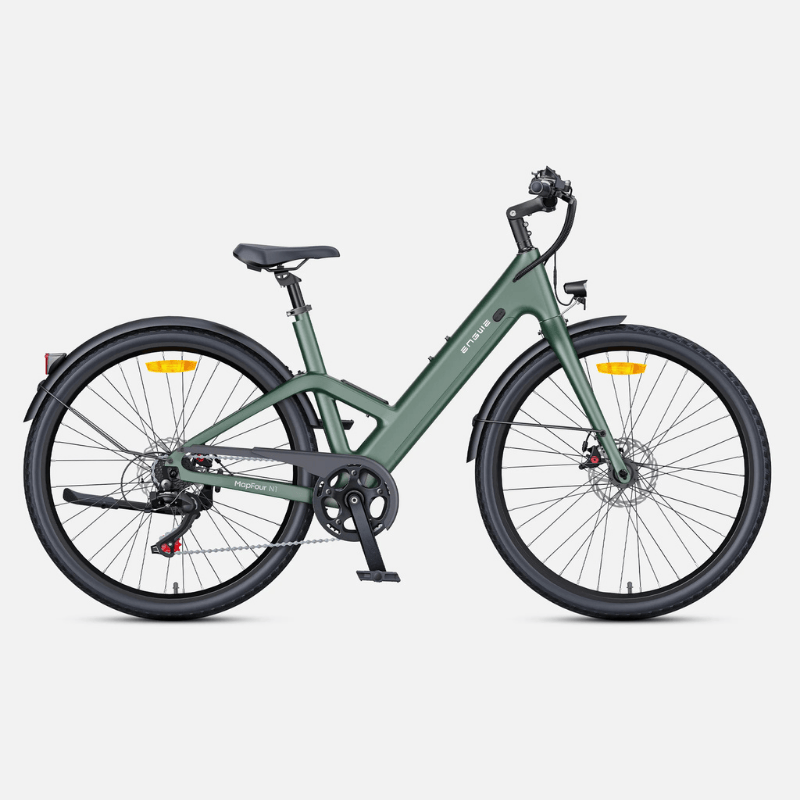

The N1 Air comes in two versions to suit everyone’s needs: the step-over design for a sporty, high-performance experience, and the step-through design for easy access and everyday comfort.

Its ultra-light 1.28kg carbon frame is eleven times stronger than aluminum, providing precise control, especially on sharp turns.

Crafted with premium Toray carbon fiber, the same material used by Trek, it features exclusive monocoque molding for superior strength and durability.

Designed for a smoother ride, the carbon frame absorbs shocks, reducing road vibrations and offering greater comfort and control, even on rougher terrains.

Equipped with a 36V 10Ah Samsung removable battery, the N1 Air allows for easy battery removal or insertion in seconds, blending convenience with simplicity.

With a long-lasting 100km range, the N1 Air lets you ride for a week on a single charge, so you can focus on the journey, not on recharging.

Anti-theft Protection
Keep your bike secure with advanced smart technology that senses potential threats. It features motion detection, GPS tracking, and geo-fencing to ensure your bike stays safe during your urban commute.

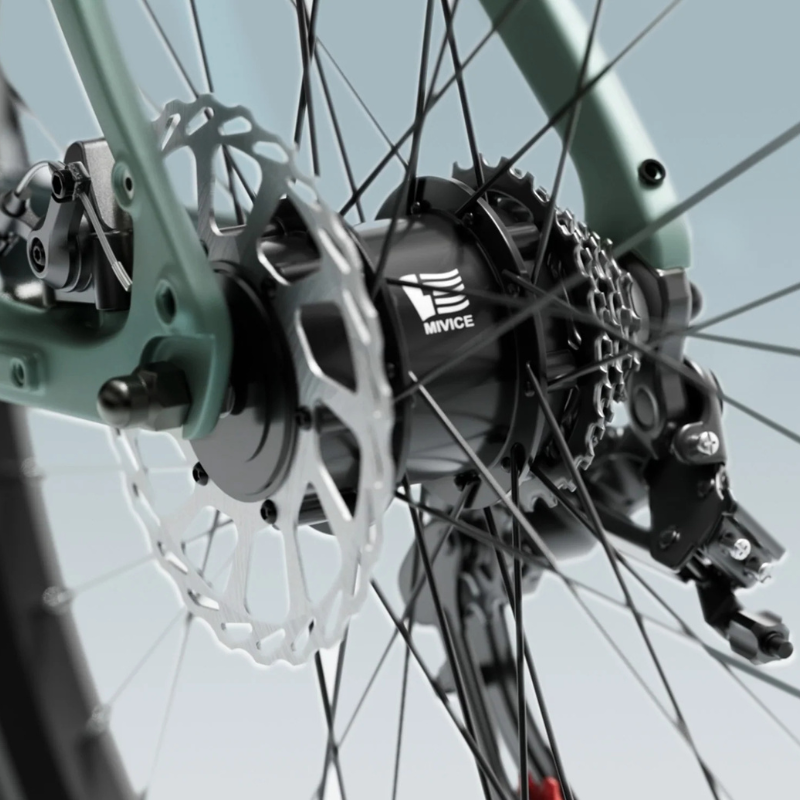

The N1 Air is powered by a 250W inner rotor motor delivering 42Nm of torque with a top speed of 15.5mph (25km/h), delivering seamless performance in a sleek design almost indistinguishable from a standard bike.

With Shimano 7-speed gears, you can easily shift through gears for versatile performance across different terrains and conditions.

The torque sensor provides a smooth and responsive pedal-assist system by precisely measuring your pedal force, ensuring the most natural ride experience.

For added safety, the N1 Air comes with high-quality mechanical disc brakes that offer reliable stopping power with minimal maintenance.

Additionally, the solar-powered tail light enhances the bike’s eco-friendly performance, ensuring your ride is safe and sustainable.

The N1 Air has a 250W Motor and Max speed 15.5mph, which complies with UK regulations.

For more information on electric bike Laws in the UK click here

Specifications

N1 Air

• Material:

  • Carbon Fiber Frame
  • Aluminium Fork

• Motor:

  • MIVICE M070 Rear Hub Motor

• Sensor:

  • Torque Sensor

• Torque:

  • 40 Nm (Why Torque Matters?)

• Tires:

  • 700*38C Spoke Tires

• Lights:

  • Front light & Solar Tail Light

• Transmission System:

  • SHIMANO 7-Speed

• Brakes:

  • 160mm Front & Rear Mechanical Disc Brakes

• Battery:

  • 36V 10Ah SAMSUNG Removable Lithium-ion Battery

• Speed:

  • 25 km/h

• Mileage:

  • 100 km (PAS 1 level)

• Charging Time:

  • About 5-8 hours (depending on battery usage)

• Maximum Climbing Degree:

  • 10°

• Display:

  • LCD Color Display

• Bike Weight:

  • 15.6 kg (34.39 lbs)

• Gross Weight:

  • 25.4 kg (55.99 lbs)

• Note:

  • All stated weight numbers have a +/- 3%-5% tolerance.
  • Bike weight includes the battery but excludes accessories.

N1 Air ST

• Material:

  • Carbon Fiber Frame
  • Aluminium Fork

• Motor:

  • MIVICE M070 Rear Hub Motor

• Sensor:

  • Torque Sensor

• Torque:

  • 40 Nm (Why Torque Matters?)

• Tires:

  • 700*38C Spoke Tires

• Lights:

  • Front light & Solar Tail Light

• Transmission System:

  • SHIMANO 7-Speed

• Brakes:

  • 160mm Front & Rear Mechanical Disc Brakes

• Battery:

  • 36V 10Ah SAMSUNG Removable Lithium-ion Battery

• Speed:

  • 25 km/h

• Mileage:

  • 100 km (PAS 1 level)

• Charging Time:

  • About 5-8 hours (depending on battery usage)

• Maximum Climbing Degree:

  • 10°

• Display:

  • LCD Color Display

• Bike Weight:

  • 16.4 kg (36.15 lbs)

• Gross Weight:

  • 25.4 kg (55.99 lbs)

• Note:

  • All stated weight numbers have a +/- 3%-5% tolerance.
  • Bike weight includes the battery but excludes accessories.


Size

N1 Air

Rider Height: 5.41(ft)-6.56(ft)
Payload Capacity: 120KG (264.5lbs)
Package Dimensions (LWH):146.4*22.5*73CM

A--Wheelbase

109.1CM

B--Total Length

179.7CM

C --Reach

42CM

D--Standover Height

75.8CM

E--Minimum Saddle Height

84.5CM

F--Maximum Saddle Height

100CM

G--Min Handlebar Height

105CM

H--Max Handlebar Height

112CM

Please note: There may be a difference of 0~5 CM between measured and actual data.

What's In The Box

N1 Air E-bike *1

36V 10Ah SAMSUNG Lithium-Ion Battery *1

48V 2Ah Battery Charger *1

Pedals *2

Front & Rear Fenders *1

Bike Kickstand *1

Assembly Tools *1

Please note: The product you receive is based on the option you selected to order.
